Description

OPTIONAL FEATURES:

3D Marking:

• This module guarantees you precise and uniform laser marking,
  whatever the regularity of the pieces, or the complexity of their shape.
• Simplify your integration: No need to adjust the focal distance – Easy
  programming Highest amplitude.
• Choose the best solution on the market:
• Focal 160: up to 60 mm (2.36 in)
• Focal 254: up to 120 mm (4.72 in)
• Fastest solution – Reduce your marking cycle time: Less than 100ms to
  change the focal distance Instant refocusing.

Autofocus:

• This module automatically adjusts the focal distance without
  calibration or wait time.
• Guarantee of optimal marking regardless of the  fitness of the parts or
  their shape.
• Exceptional range up to 120mm (4.72 in) for part height variation for
  marking various types of parts on the same line.
• Constant contrast & depth.

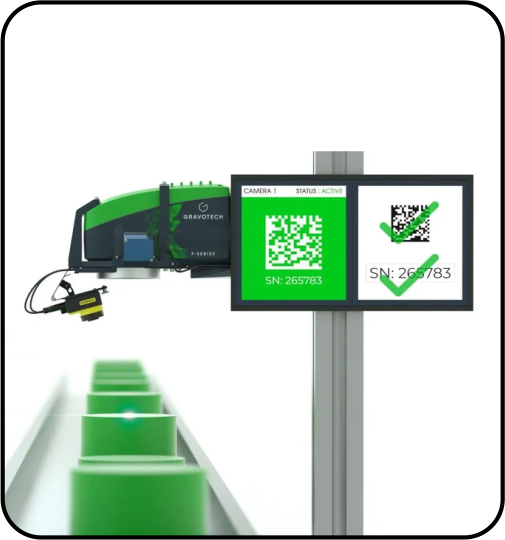

Vision Manager – Immediate marking control:

• 2D code content verification.
• Graduation of the code and trigger of operations: file selection,
  dialogue with the PLC, activation of alarms, actuators for rejecting
  faulty parts.
• Used with Lasertrace software, this module includes a Cognex Insight
  camera with lighting, auto-focus system, and protective lens.
• It offers a perfect reading of all 1D and 2D codes

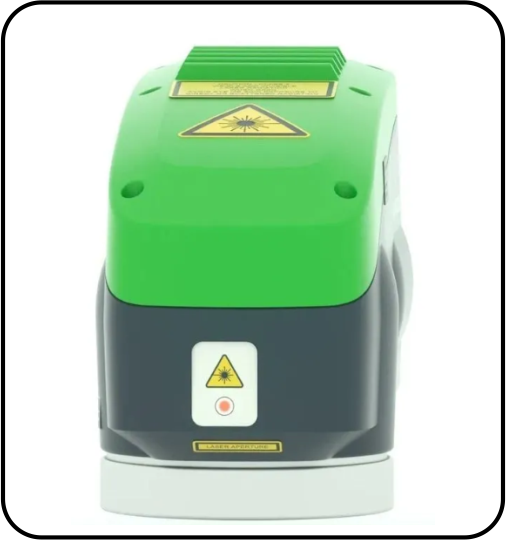

TECHNICAL DATASHEET: Fiber Laser
